ICEX 2022
Mar 18
Feb 24
Mar 8
Alaska

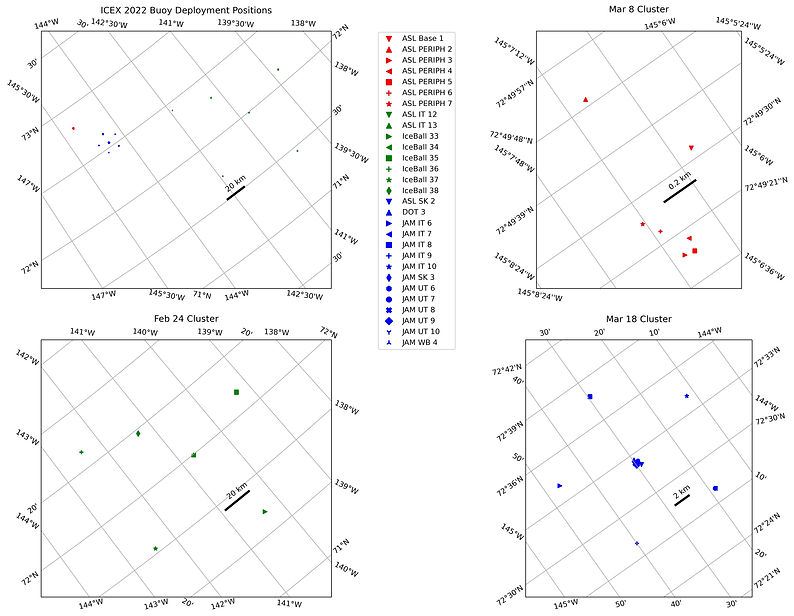

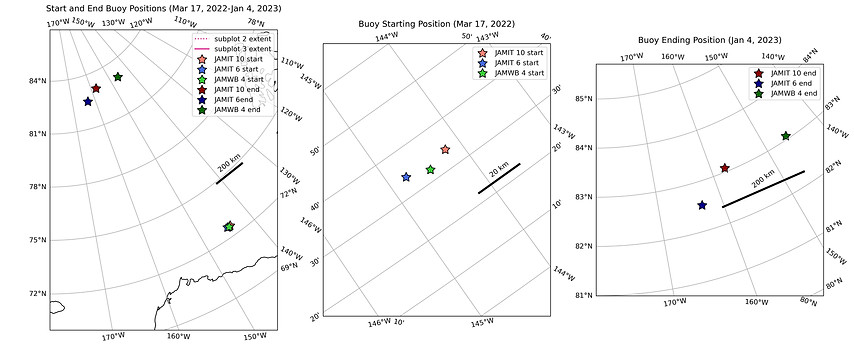

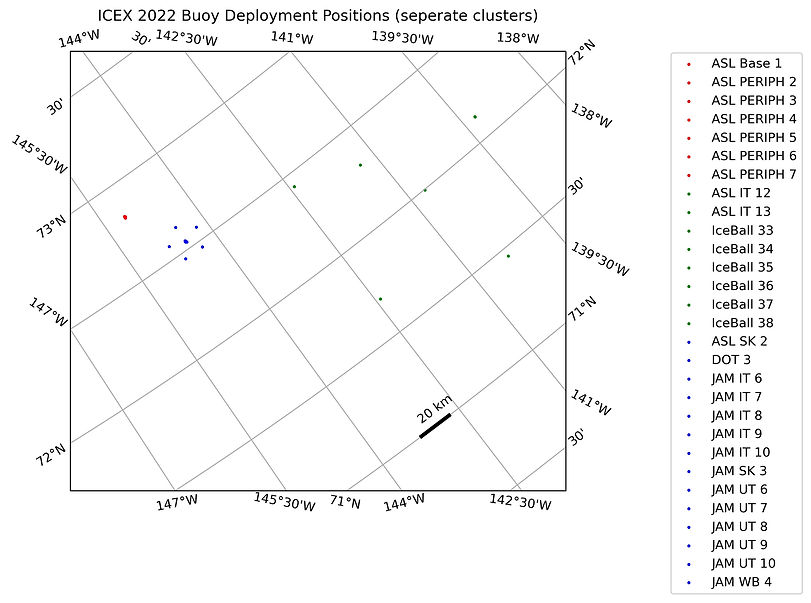

Initial Deployment Positions
Zoomed in location clusters by date

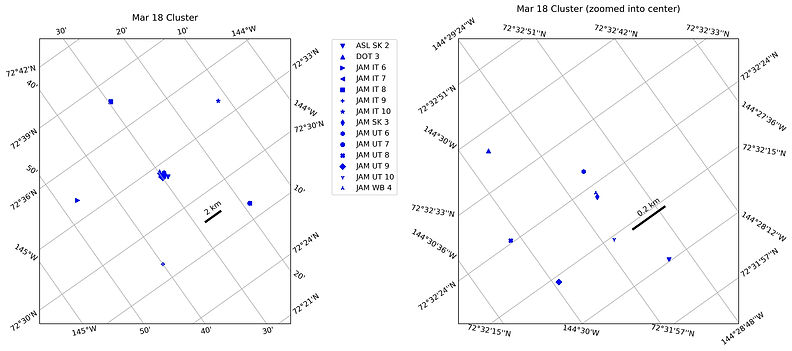

Zoomed in Mar 18 cluster

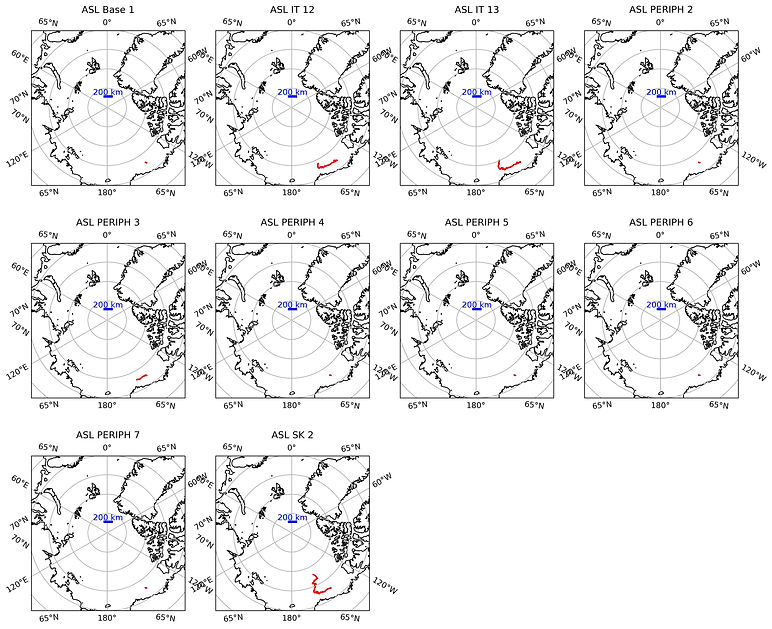

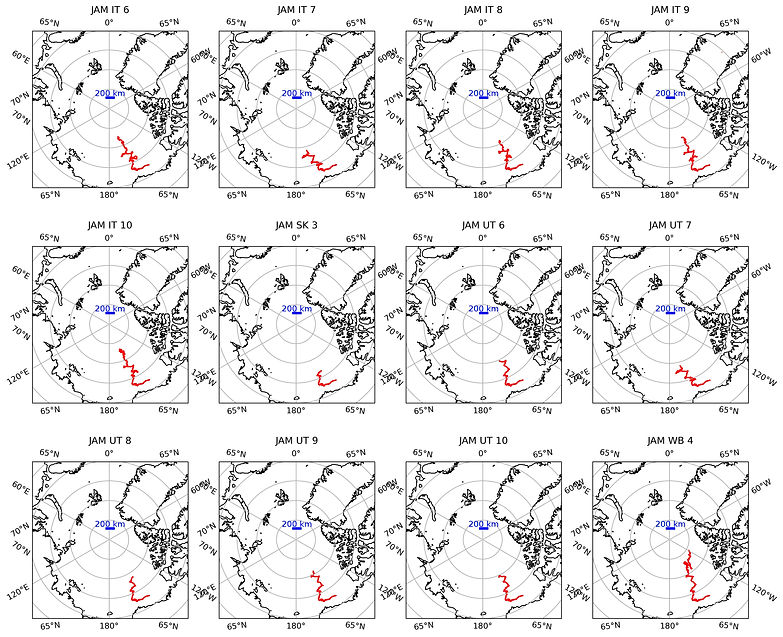

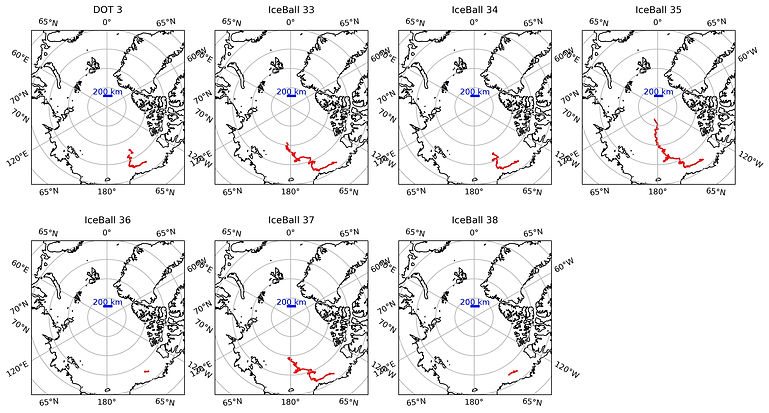

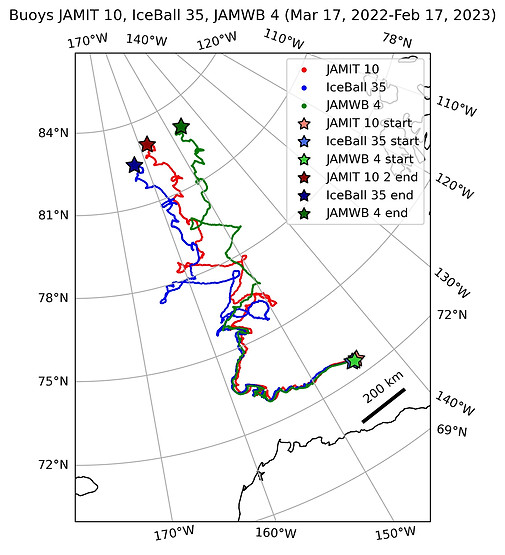

Buoy Drift Tracks
Buoy Drift Tracks
Buoy Drift Tracks

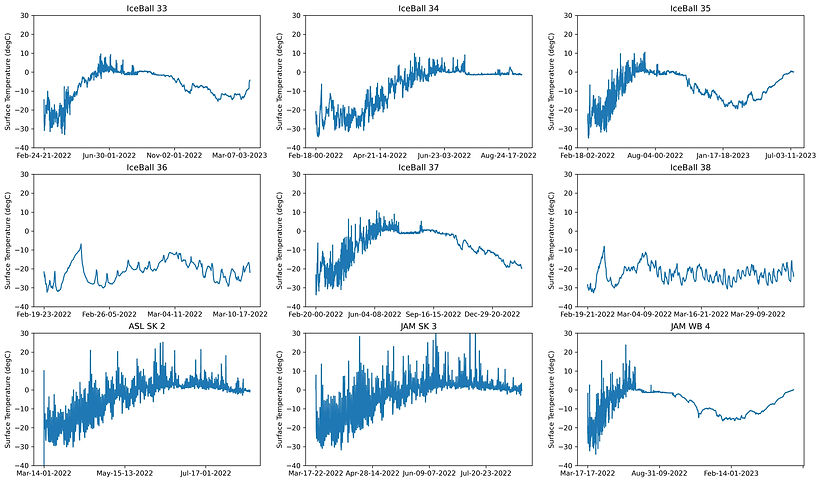

Surface Temperature Time Series

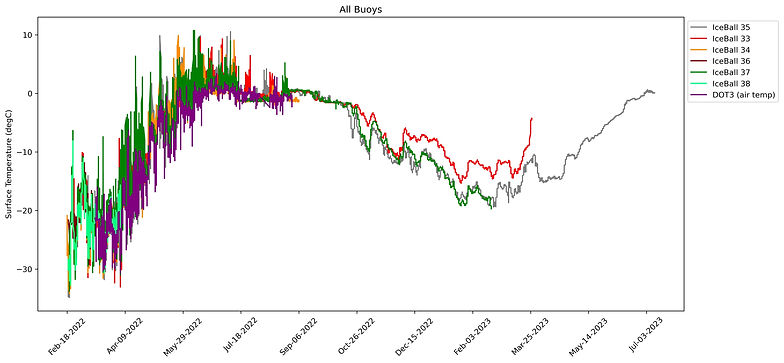

All Buoys Surface Temperature
IceBall Buoys + DOT-3 (air temperature)

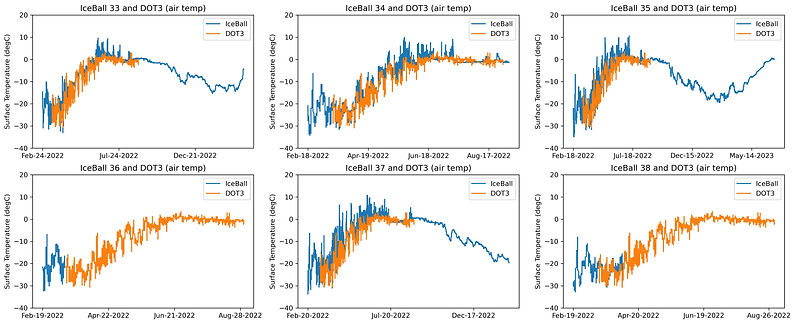

IceBall vs. DOT-3 Temperatures

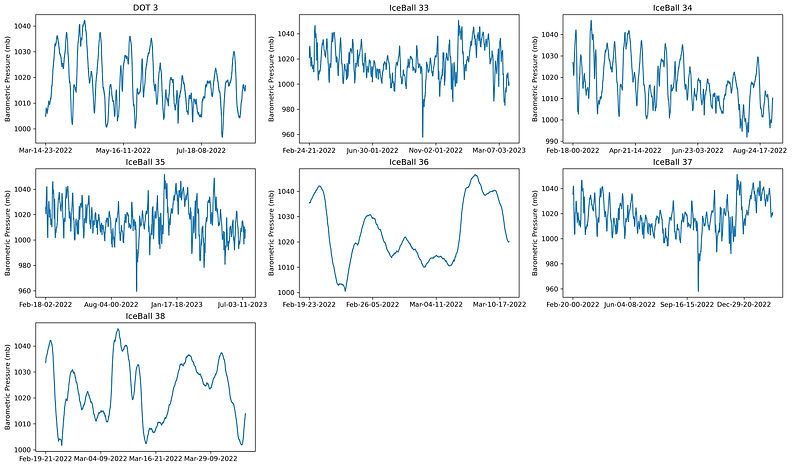

Barometric Pressure Time Series

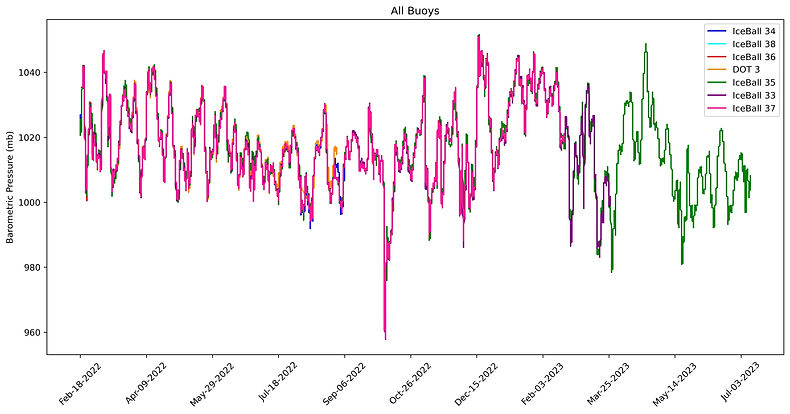

All Buoys Barometric Pressure
R^2 and RMSE
33: ​0.983286 and 2.351224
34: 0.988087 and 1.668720
35: 0.989509 and 1.855752
36: 0.986538 and 2.279331
37: 0.864171 and 1.127964

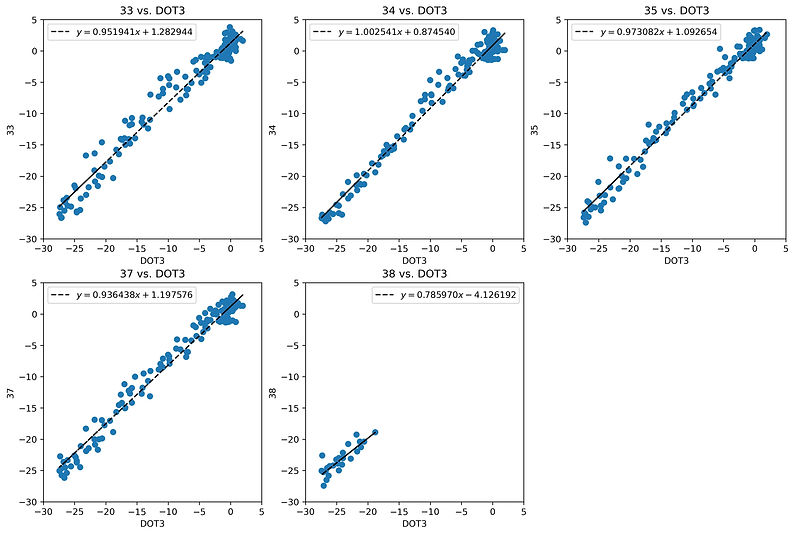

IceBall vs. DOT-3 Temperature Scatterplots
R^2 and RMSE
33: ​​0.813693 and 1.778127
34: 0.967666 and 0.685544
35: 0.859948 and 1.505444
36: 0.931983 and 1.600879
37: 0.935169 and 1.174849
​

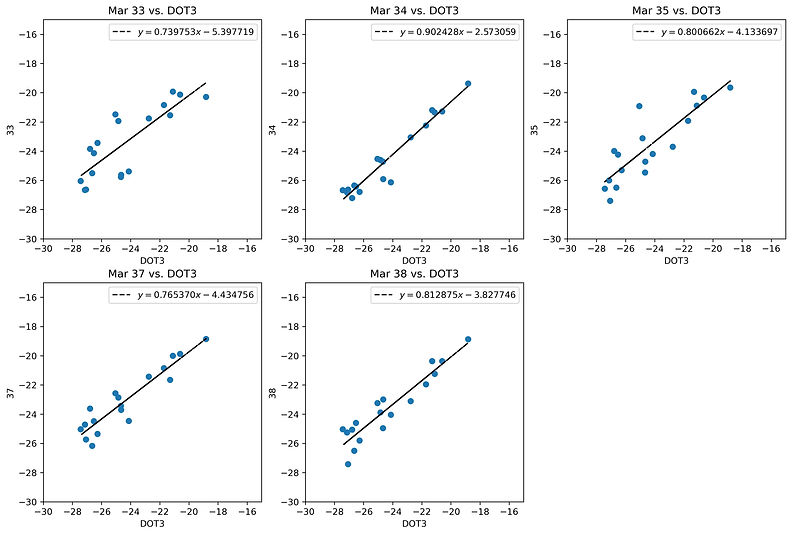

IceBall vs. DOT-3 Temperature (March)
R^2 and RMSE
33: ​0.924981 and ​3.221526
34: 0.988581 and 1.150507
35: 0.954184 and 2.431076
36: 0.945430 and 3.366251
37: 0.811447 and 2.156699
​
IceBall vs. DOT-3 Temperature (April)
R^2 and RMSE
33: ​0.725623 and 3.268211
34: 0.907084 and 2.833184
35: 0.913905 and 2.549610
36: 0.945519 and 2.866707

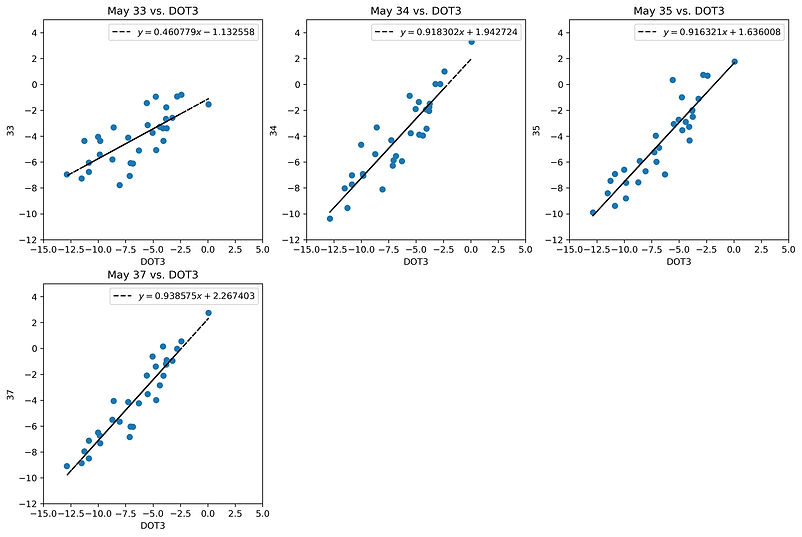

IceBall vs. DOT-3 Temperature (May)
R^2 and RMSE
33: ​0.818482 and 2.093722
34: 0.671519 and 1.863626
35: 0.846560 and 1.658837
36: 0.754604 and 2.143645

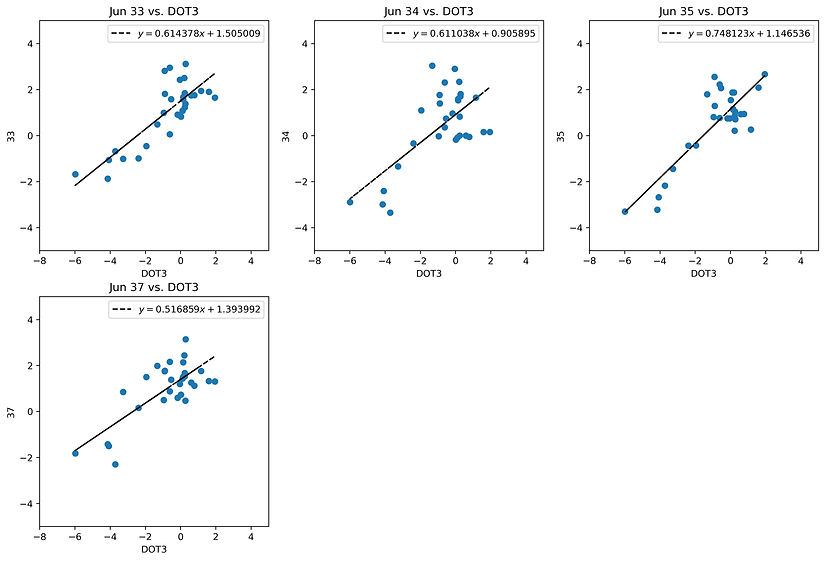

IceBall vs. DOT-3 Temperature (June)
R^2 and RMSE
33: ​0.478025 and 1.204565
34: 0.658721 and 1.020653
35: 0.569558 and 1.274596
36: 0.507458 and 1.227734
​
IceBall vs. DOT-3 Temperature (July)
R^2 and RMSE
33: ​0.136163 and 1.047551
34: 0.247449 and 0.941848
35: 0.174105 and 0.619010
36: 0.308793 and 0.965035

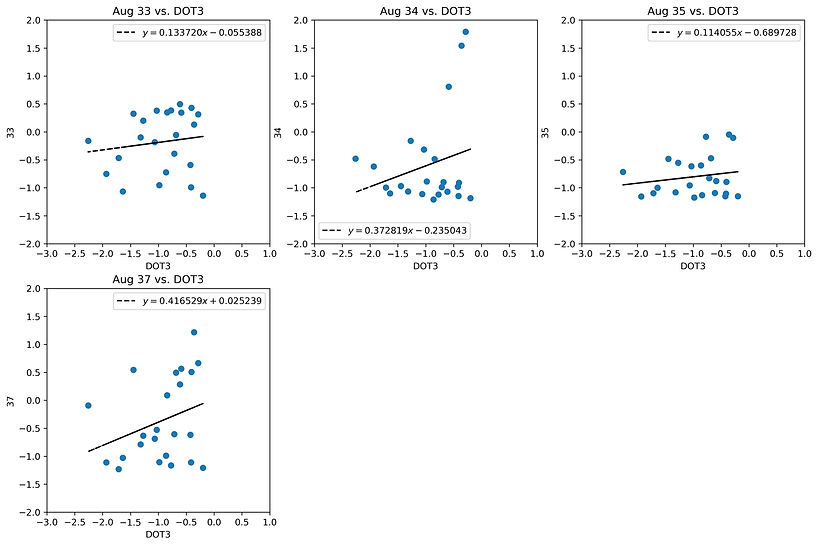

IceBall vs. DOT-3 Temperature (August)
Triangle of Buoys (convergence and divergence)
Triangle of Buoys (path)
Utqiagvik 2022

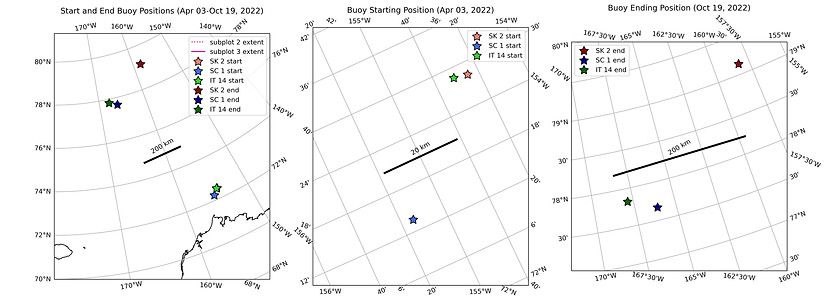

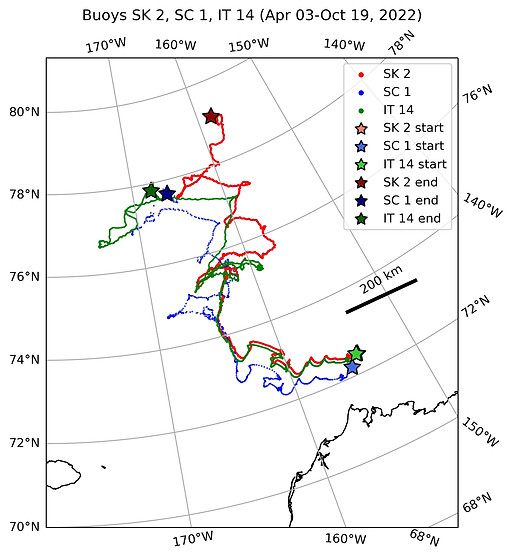

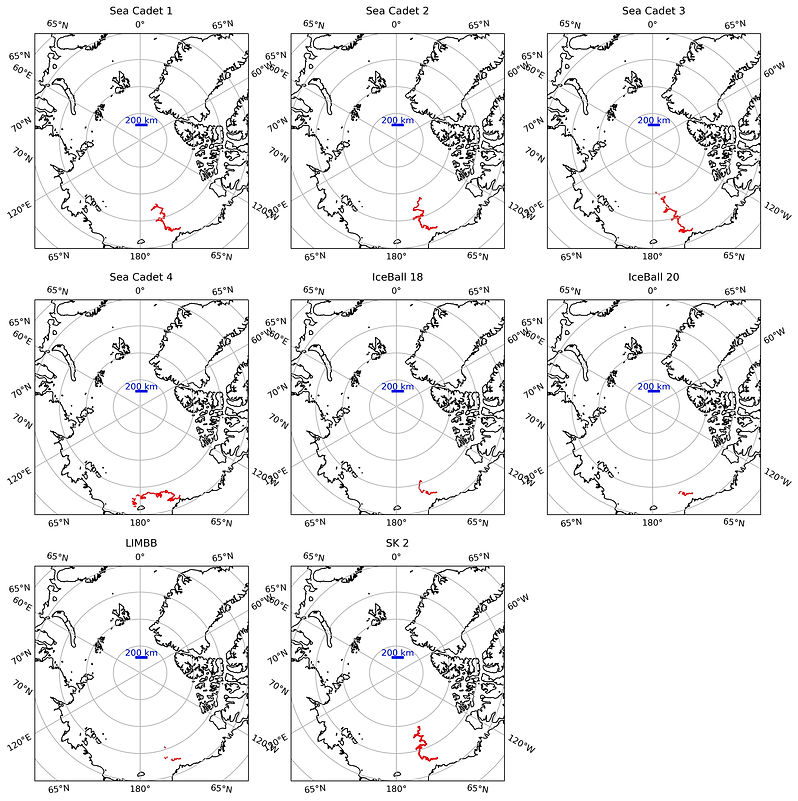

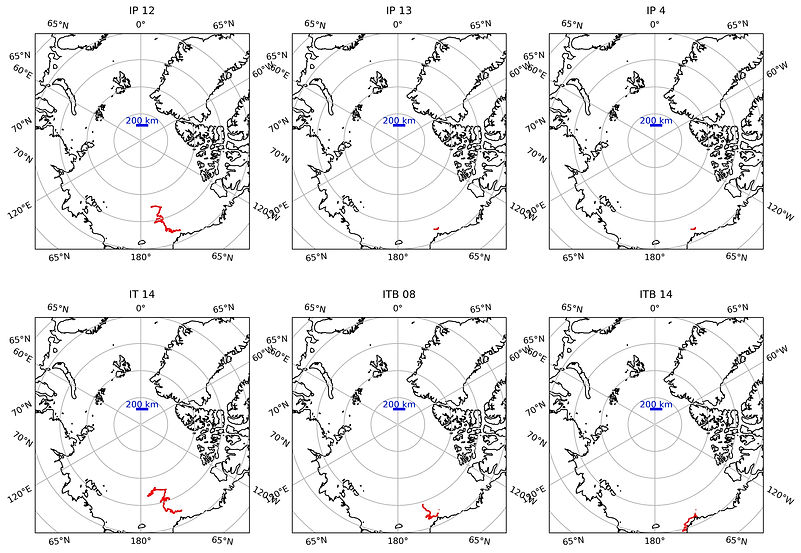

Buoy Drift Tracks
Buoy Drift Tracks

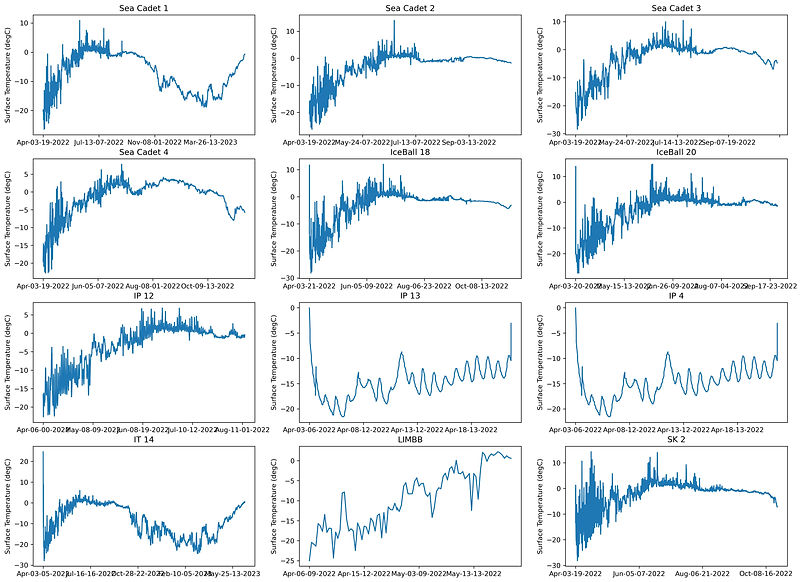

Surface Temperature Time Series
All Buoys Temperatures

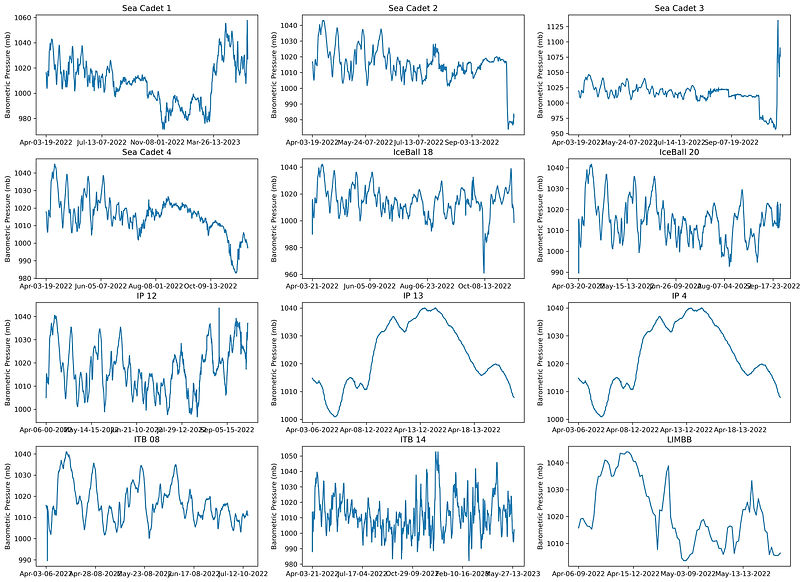

Barometric Pressure Time Series

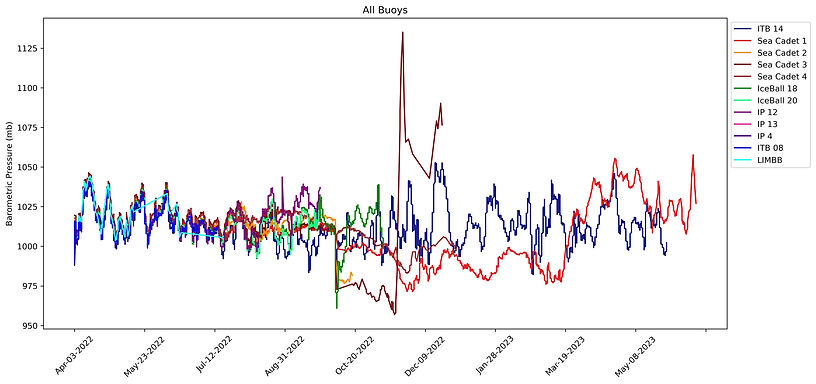

All Buoys Pressures

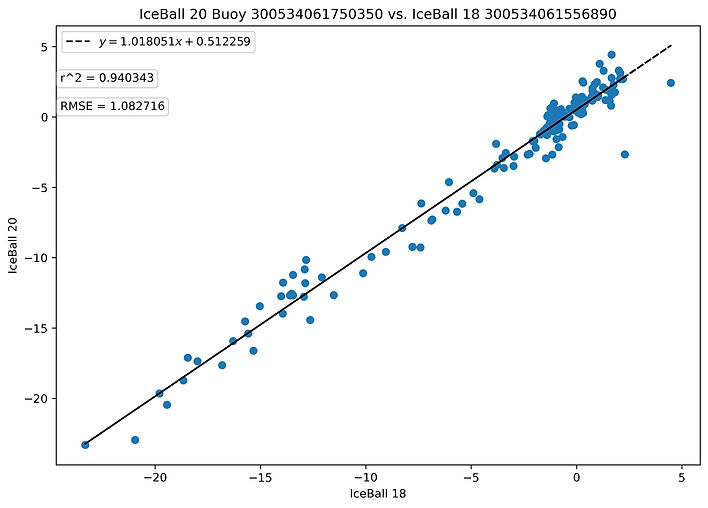

IceBall 18 vs. IceBall 20 Temperature Scatterplot

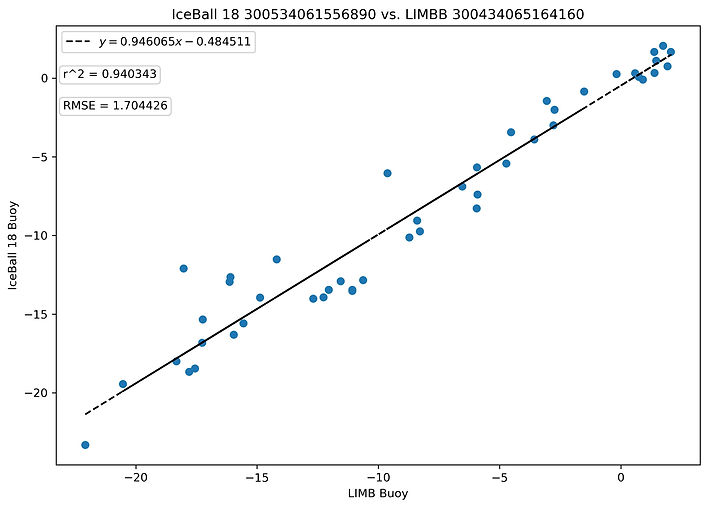

IceBall 18 vs. LIMB Buoy Temperature Scatterplot

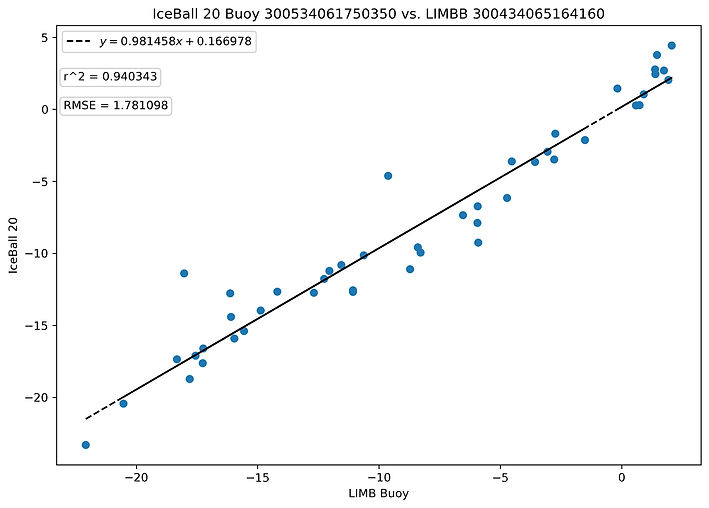

IceBall vs. LIMB Buoy 20 Temperature Scatterplot
Triangle of Buoys (convergence and divergence)
Triange of Buoys (path)
